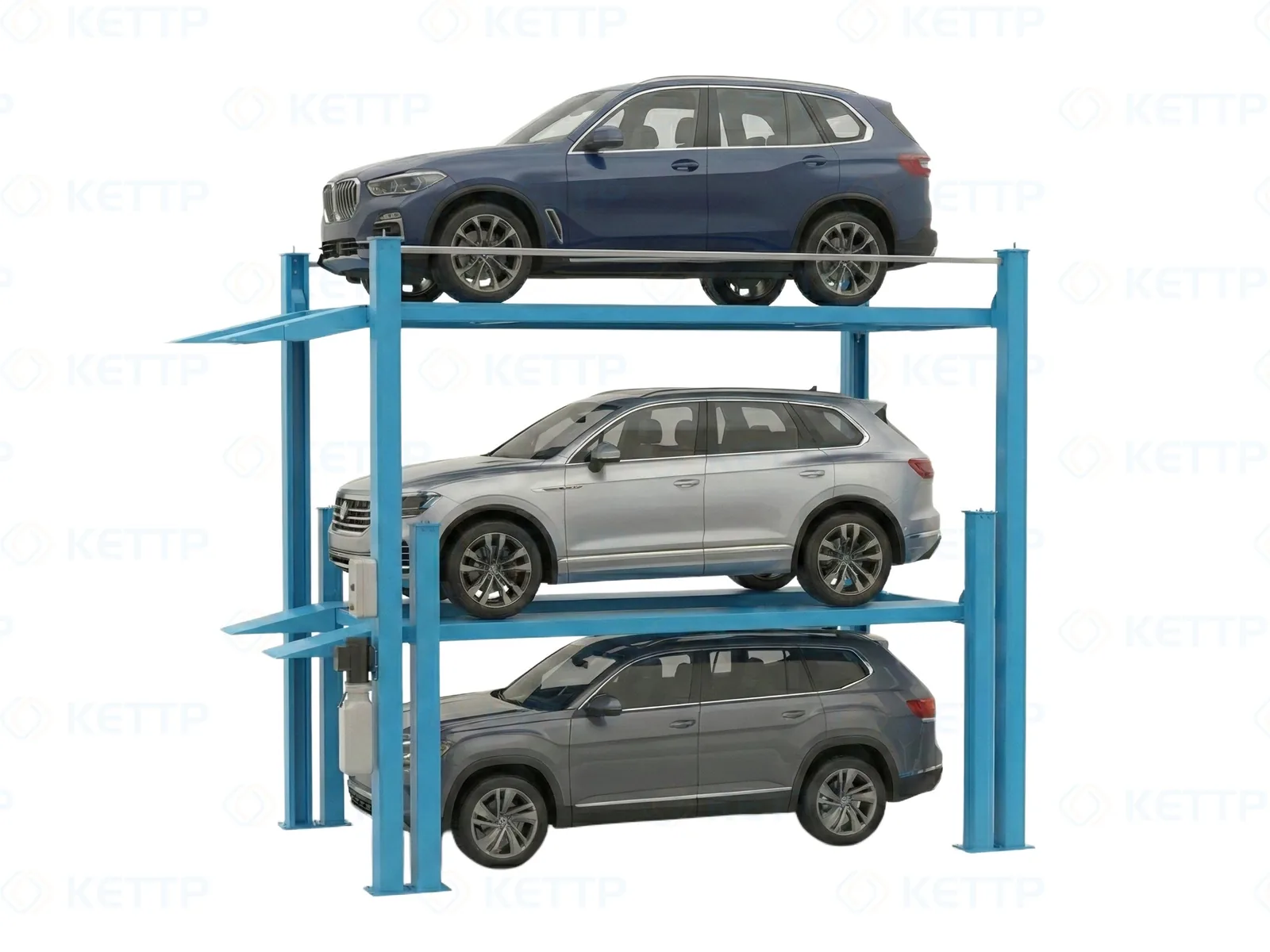

3E · Heavy Duty 8-Post Triple Auto Stacker
Kettp™ 3E Heavy Duty Triple Auto Stacker is engineered with an uncompromising 8-post architectural design — each elevated platform rests on its own dedicated set of four independent columns. Unlike shared-column 4-post triple stackers, the 3E completely eliminates platform sway, delivering the ultimate structural confidence for long-term heavy vehicle storage. Rated at 3600 kg on the middle platform and 3000 kg on the top — both levels accommodate full-size SUVs, pickup trucks, and heavy sedans.
Features
- 8-post (two independent 4-post lifts) — maximum rigidity under asymmetric load
- Shared hydraulic circuits: raise or lower platforms by switch
- Heavy load platform — supports full-size SUVs, pickup trucks and commercial vehicles
- Foldable upper boarding ramp stores flush with the platform edge when the upper bay is lowered
- Mechanical ratchet safety lock at every column, full-range engagement
- Self-levelling steel rope synchronises all four posts of each platform
- 24V DC control with individual platform handsets and optional master-panel interlock
- CE certified with full structural and load documentation
Specifications
| Rated Capacity | 4,000 kg lower platform/3,000 kg upper platform |
|---|---|
| Levels | 3 (1 ground + 2 raised) |
| Drive System | Hydraulic Cylinder + Wire Rope per platform |
| Motor Power | 2.2 kW |
| Column Configuration | 8-Post |
| Vehicles | 3 |
| Synchronisation | ±5 mm under asymmetric load |
| Upper Ramp | Foldable, flush-store |
| Control Voltage | 24V DC |
| Safety Locks | Mechanical ratchet at all columns |
| Min. Ceiling Height | ~5,200 mm |
| Certification | CE Marked |
