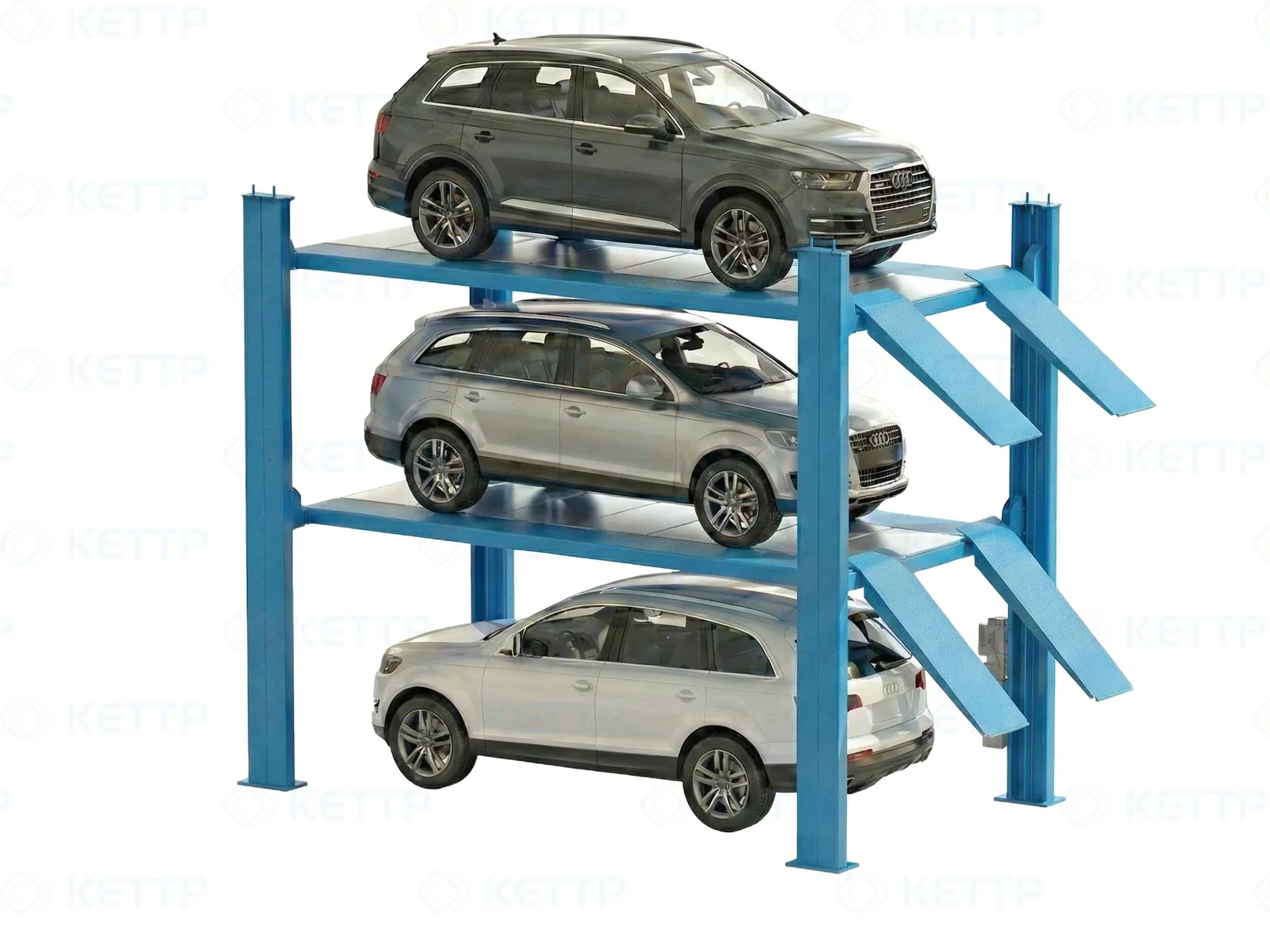

3FS · Tri-Level Auto Storage Stacker
A combined-post heavy-capacity triple stacker designed specifically for commercial throughput — the combined-post frame provides exceptional rigidity across wide bays, while stackable drive-on ramps and electromagnetic or pneumatic action automatic locks enable rapid, reliable vehicle retrieval. Optimised for car dealerships, fleet operators and large-scale commercial garages.
Features
- Combined-post structure: greater rigidity across wide bays versus independent-post designs
- Stackable drive-on ramps fold and store automatically as upper platforms rise
- Electromagnetic or pneumatic action automatic locks at each level
- High-cycle duty rating: designed for commercial throughput operations
- Heavy-capacity 4,000 kg per platform — accommodates large SUVs
- Hydraulic + wire rope drive with independent monitoring of each rope segment
- 24V DC control with operator touch-panel and emergency stop at every level
- CE certified; suitable for automobile dealerships and fleet storage
Specifications
| Rated Capacity | 4,000 kg for lower platform/3000 kg for upper platform |
|---|---|
| Levels | 3 |
| Drive System | Hydraulic + Steel Wire Rope |
| Ramp System | Stackable, auto-folding |
| Lock System | Electromagnetic or Pneumatic Automatic Lock |
| Column Configuration | Combined-Post Frame |
| Motor Power | 3.0 kW |
| Control Voltage | 24V DC |
| Duty Rating | Commercial / High-Cycle |
| Safety Locks | Automatic dual-action at every level |
| Min. Ceiling Height | ~5,200 mm |
| Certification | CE Marked |
