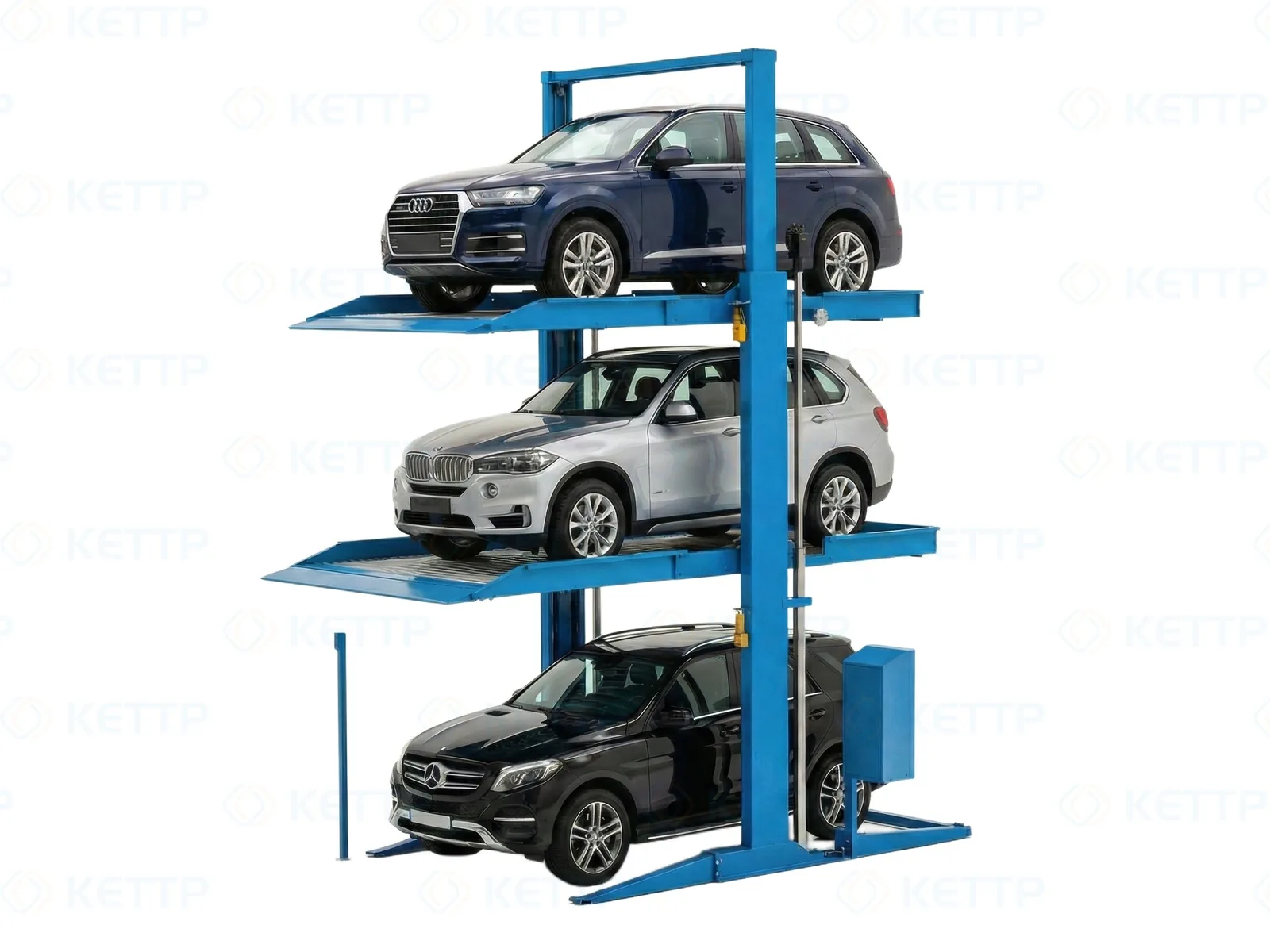

3T · 2-Post Triple Car Stacker
The most compact triple-level stacker available: only two posts drive a double-cylinder chain system to triple the parking density of a single bay. drivers enjoy 100% unobstructed drive-in access, effortless door opening, and a massive 2100 mm ground-level clearance that easily accommodates full-size SUVs below. A synchronized hydraulic double cylinder + double chain drive silently elevates two upper platforms, each rated to 2500 kg, delivering heavy-duty 3-tier storage for residential, commercial, and collector applications.
Features
- Ultra-compact: only 2 posts required — lowest footprint of any triple stacker
- Double-cylinder chain drive delivers smooth, reliable triple-level operation
- No Front or Rear Columns
- 3× parking density per bay footprint — the most efficient residential triple stacker
- Mechanical anti-falling safety lock on both columns
- Low 150 mm entry ramp on all platforms for easy vehicle access
- 24V DC control with sequential platform logic and automatic ramp management
- CE certified; structural steel powder-coated or galvanized to order
Specifications
| Rated Capacity | 2,500 kg per platform |
|---|---|
| Levels | 3 |
| Drive System | Double Hydraulic Cylinder + Roller Chain |
| Motor Power | 3.0 kW |
| Column Configuration | 2-Post |
| Vehicles | 3 per unit |
| Ganged Array | Compatible |
| Entry Ramp Height | 150 mm |
| Control Voltage | 24V DC |
| Safety Locks | Mechanical, both columns, full-range |
| Min. Ceiling Height | ~5,000 mm |
| Certification | CE Marked |
Enquiries: info@parking.bg · +359 888 452 770
