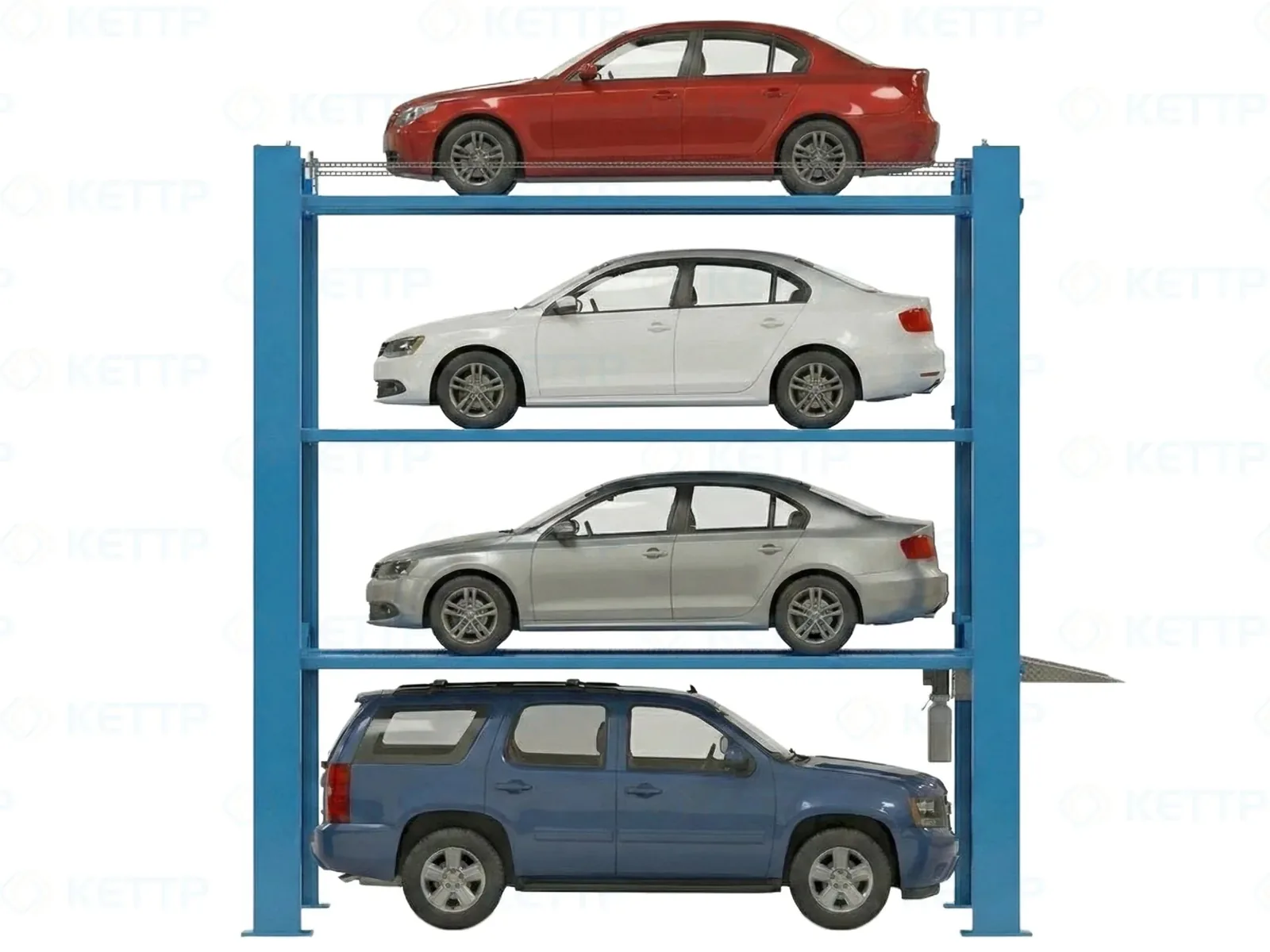

4E · Economical Quad Car Stacker
Cost-optimised four-level stacking with a combined-post frame structure that delivers quadruple parking density at the most competitive price point in the KETTP range. The hydraulic cylinder + wire rope drive with electric anti-falling locks provides reliable operation in high-cycle commercial environments, while the combined-post architecture minimises the structural steel required.
Features
- 4-level stacking: quadruples parking density in a single bay footprint
- Combined-post frame: make the structure extra strong
- Hydraulic cylinder + wire rope drive — reliable, low-maintenance system
- Electric anti-falling solenoid locks at every level — automatically engage on power loss
- Sequential platform control logic prevents unsafe simultaneous multi-level movement
- Drive-on ramps fold automatically as platforms rise to correct position
- 24V DC control circuit with column-mounted emergency stop at each level
- CE certified; suitable for apartment complexes, commercial car parks and fleet storage
Specifications
| Rated Capacity | 2,000 kg per platform |
|---|---|
| Levels | 4 |
| Drive System | Hydraulic Cylinder + Steel Wire Rope |
| Motor Power | 3.0 kW |
| Column Configuration | Combined-Post |
| Vehicles | 4 |
| Lock System | Electric Anti-Falling Solenoid at every level |
| Control Logic | Sequential, multi-level interlock |
| Control Voltage | 24V DC |
| Ramp System | Auto-stack as platform down |
| Min. Ceiling Height | ~6,500 mm |
| Certification | CE Marked |
