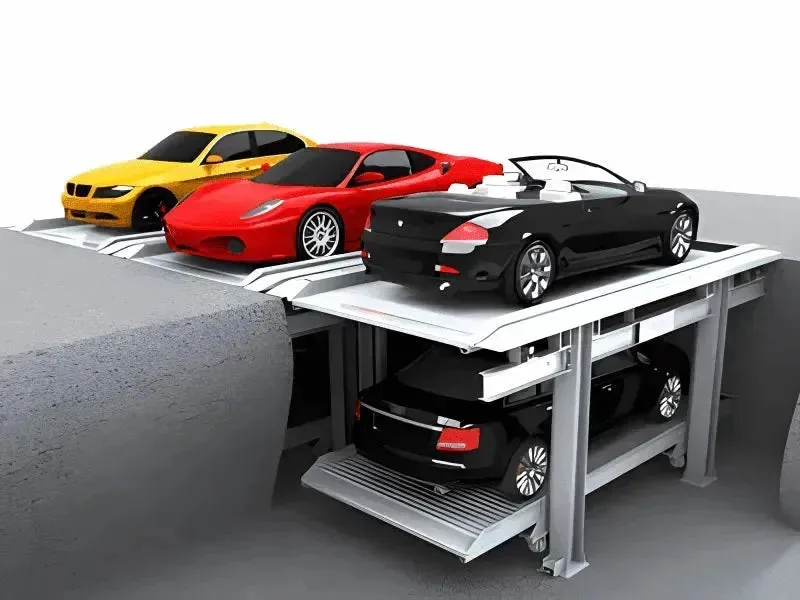

2FP · 2-Level Underground Parking Lift — Motor Chain
A 4-post motor-and-chain drive underground parking lift that eliminates hydraulic fluid entirely from the pit environment — critical for sites above groundwater tables, habitable spaces, or where environmental regulations prohibit oil underground. The 4-post frame provides superior lateral stability versus 2-post alternatives, and optional hot-dip galvanizing ensures a corrosion-free service life.
Features
- Zero hydraulic fluid: motor + roller chain drive removes all oil-leak risk from the pit
- 4-post frame delivers superior lateral rigidity vs. 2-post pit designs
- Platform flushes with grade when lowered — no trip hazard, no visible structure
- Optional hot-dip galvanized entire pit structure including chain, sprockets and frame
- IP65-rated limit switches and fully sealed wiring for pit environment
- Equipped with anti-falling lock to ensure safety
- CE and BS EN 14010 certified for underground parking applications
- 24V DC safe control voltage; suitable for residential and light commercial use
Specifications
| Levels | 2 (1 underground + 1 at grade) |
|---|---|
| Vehicles | 2 |
| Drive System | Electric Motor + Roller Chain (Oil-Free) |
| Motor Power | 2.2 kW |
| Rated Capacity | 2,500 kg per vehicle platform |
| Pit Depth | ~2,100 mm |
| Column Configuration | 4-Post |
| Above-Ground Structure | Zero |
| Pit Finish | Optioinal Hot-dip galvanized throughout |
| Limit Switches | IP65 rated |
| Control Voltage | 24V DC |
| Certification | CE / BS EN 14010 |
